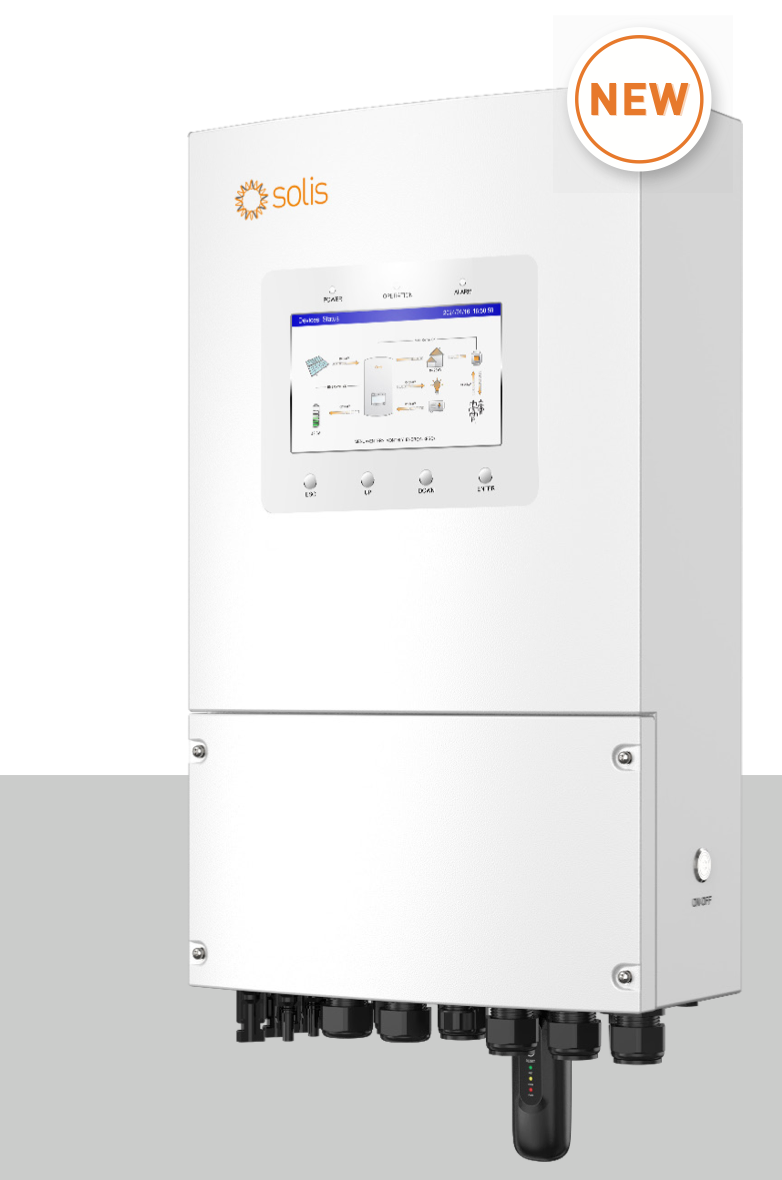

Large Inverter

8Kw Smart Hybrid Inverter with a 5 Year Warranty

g99 DNO compliant

7-inch LCD screen for an intuitive user experience

Requires a 37a ac isolator or above

Solar:

Up to 32 panels in two strings of 3-16 solar panels.

Battery:

Can charge four low voltage 16kWh batteries in 7 hours with its 165A battery charge/discharge capacity.

Can be used for up to 8kw backup power if combined with off grid options.

Recommended battery capacity 32-64kWh

Tech Specs:

• Built-in Backup Port with Automatic UPS switching Up to 190A max charge/discharge current
• Up to 200% DC oversizing
• 6 customisable charge/discharge time settings
• 10 second 200% surge power backup overload capability
• Generator connectivity with multiple input methods and automatic generator On/Off control
• Supports 1ph and 3ph flexible connection with max 48kW in parallel
• Intelligent AC coupling scheme, easily upgrade existing grid-connected systems Supports peak shaving control in both "self-use" and "generator" mode
• Compatible with lead-acid and lithium batteries, with multiple battery protection features
